How to Setup the Configuration Cluster in WHM

March 23, 2022 / cPanel & WHM

In this article, you will find how to set up the Configuration cluster in WHM. Using the remote access keys, root users will be able to view a configuration cluster with a master server and one or more servers through WHM’s Configuration Cluster interface.

To set up the cluster in WHM follow the steps:

1. Log in to WHM.

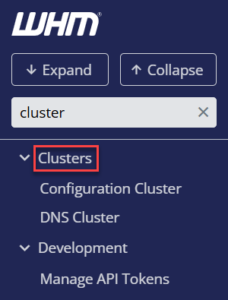

2. Select the “Cluster” category from the left-hand side of the screen.

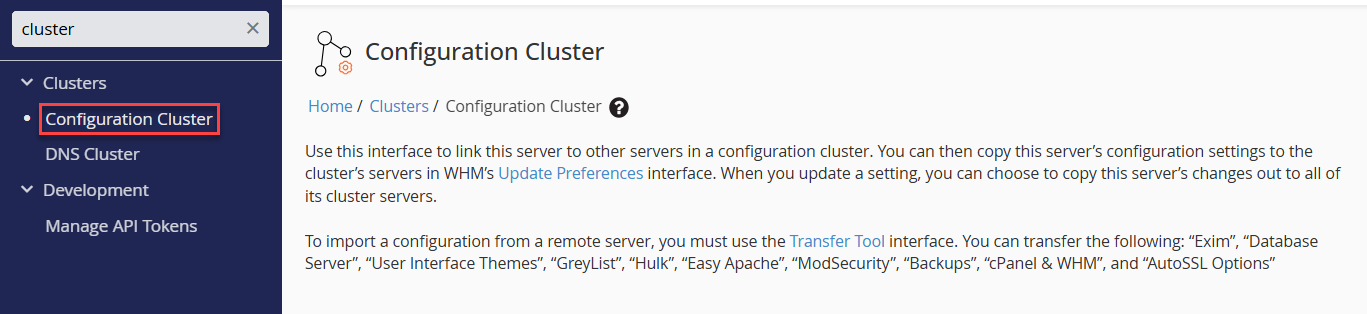

3. Click on the “Configuration Cluster” under the “Cluster” option.

Configuration Cluster

4. You will enter into the new page.

new page

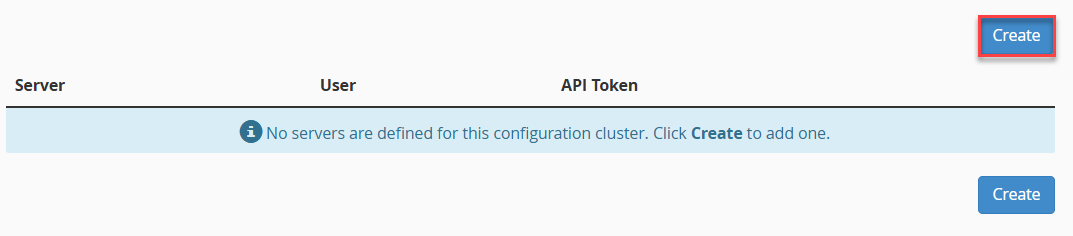

5. Click on the “Create” button.

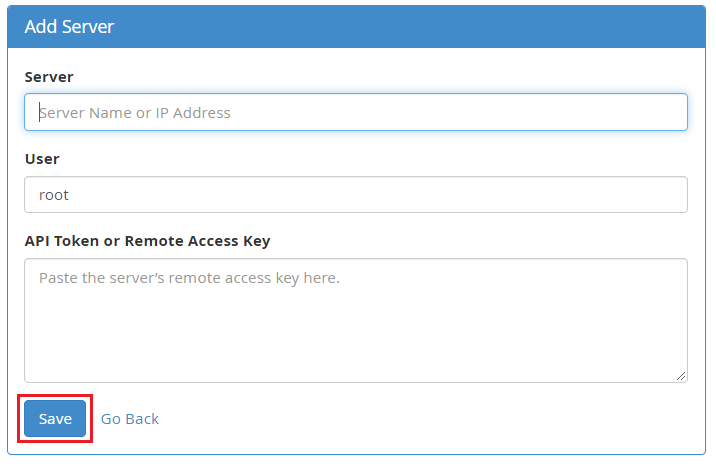

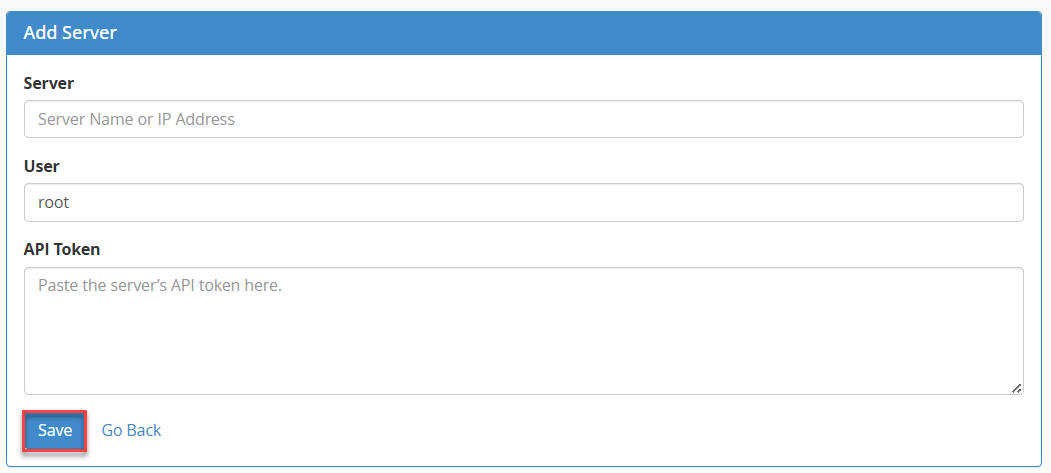

6. You will find a form type page named “Add server” as shown in the image given below.

Add server

7. Enter the details:

a) Server Name: Type the server name in this column.

Server Name

b) User: Enter the user.

Enter the user.

c) API Token or Remote Access Key: Paste the server’s remote access key here.

API Token

8. Finally click on the “Save” button.


In this manner, you may quickly link the server to other servers in a configuration cluster. You can visit eukhost Knowledge base area for more up-to-date information. eukhost expert team is available through live chats, the ticketing system, or directly via call.
